Description
| Triumph Specifications | |
|---|---|

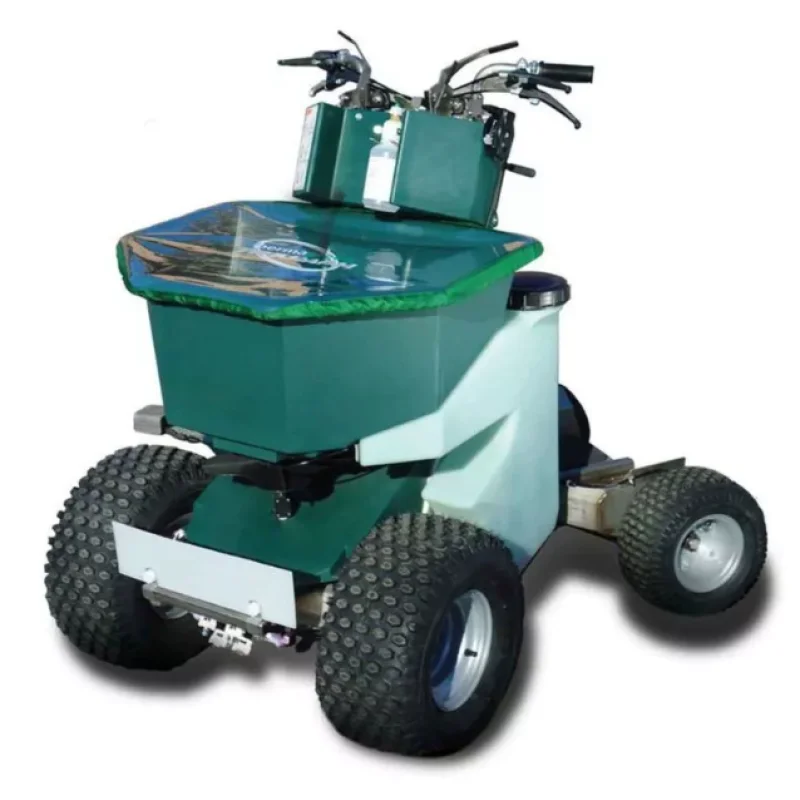

| item | T000701 Triumph Spreader Sprayer |
| engine | Honda GX200RH2 Hour meter / tachometer with maintenance timer |
| clutch | Centrifugal Honda wet clutch with 2:1 reduction |
| transmission | Peerless 855 transaxle with reverse, neutral and 2 forward production gears |
| speed | 5 MPH (high gear) 3,000 ft / minute 3.5 MPH (low gear) 2,000 ft / minute |
| fuel tank | 0.82 Honda fuel tank on engine (meets EPA evaporative standards) |
| spreader | 150 Lb. PermaGreen hopper 3-hole type mechanism, plus rate adjustment 14-Foot spread pattern Mechanically driven spinner Remote-operated deflector Remote-operated pattern adjuster Shower cap & stainless steel screen included |
| sprayer | Tanks: Twin split 6-Gallon Coverage: 48,000 ft @ 32 oz. / 1,000 ft, 24,000 ft @ 64 oz. / 1,000 ft Pump: 2 GPM diaphragm, mechanically driven Width of spray: 11.0 ft. broadcast, 3.0 ft. trim Broadcast nozzles: (2) Spraying Systems Turbo FloodJet for maximum drift reduction Trim nozzles: (2) Hypro Ultra low drift One nozzle set (broadcast & trim) for high gear & low gear Manually-operated valves for selection of nozzle type |
| frame | 100%Heavy-gauge, laser cut & precision stamped series stainless steel |
| sulky | Articulated joints, cushioned foot pads |
| tires | Front- 9.50-8 x 18 Kenda Scorpion traction tires (Filled with diluted RV anti-freeze) Rear- 6.50-6 x 13 Kenda turf tires (Filled with diluted RV anti-freeze) |
| brakes | Hand-operated, 4.0 band brakes on the sulky |
| dimensions | 58 (l) x 35.5 (w) x 41 (h) [with handle down] |
| weight | Empty: 440.0 Lb. Full: 690 Lb. + driver |
