Description

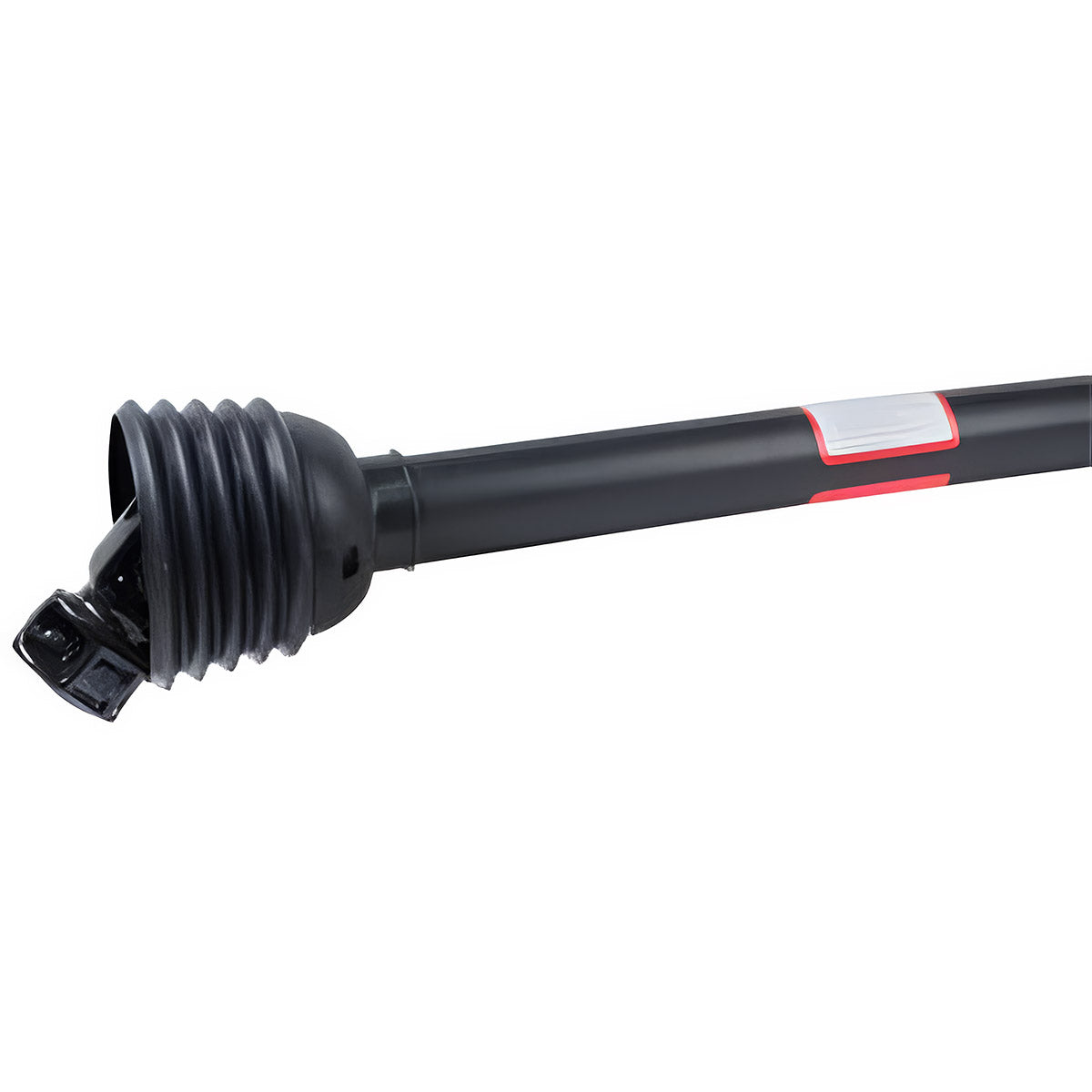

The Tru-Power Series 6 CV trilobe tube metric PTO driveline is a complete, safety-shielded driveshaft with constant-velocity (CV) joint on the tractor end for wide-angle applications. Compressed overall length is 60″, with a 1-3/4″ 20-spline tractor-end and a 1-3/4″-20-spline QD implement-end connection. Standard mid-duty farm implements.
End Connections
- Tractor End: 1-3/4″ 20-spline yoke
- Implement End: 1-3/4″-20-spline QD yoke with quick disconnect
Installation Note
Always measure compressed and extended driveline lengths against the tractor-to-implement working range before cutting. The overall length listed above is the compressed measurement out of the box.
