Description

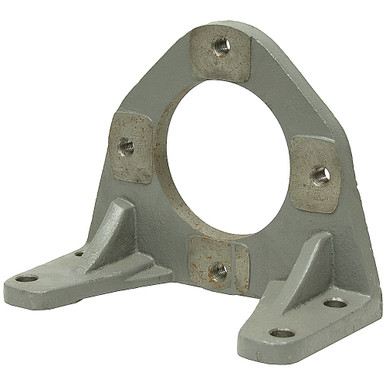

SAE C FOOT MOUNT
Brand new, cast iron foot mount for hydraulic pumps or motors with 2 bolt SAE C mounting pattern. Allows pump to be mounted with flange in either horizontal or vertical orientation.
SPECIFICATIONS
- Brand API International
- Model Number HB-C
- Pump Mount SAE C
- Pilot Dia. 5″
- Bolt Holes threaded 5/8″-11
- Bolt Spacing 7-1/8″ c/c
- Centerline Height 4-5/16″
- Base Mounting Holes Four 11/16″
- Base Mounting Pattern 3″ x 9-1/4″
- Size 10-1/2″ x 5-1-4″ x 8-1/2″
- Shpg. 16 lbs.
