Description

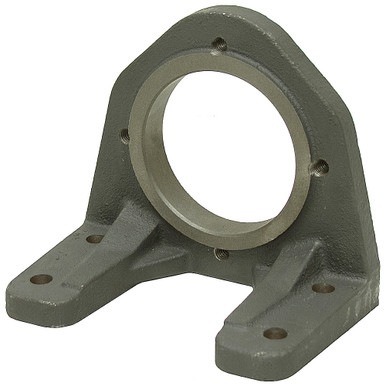

SAE A FOOT MOUNT
Brand new, cast iron foot mount for heavy cast iron or multi-section hydraulic pumps or hydraulic motors with 2 bolt SAE A mounting pattern. Allows pump to be mounted with flange in either horizontal or vertical orientation.
SPECIFICATIONS
- Brand API International
- Model Number HB-A
- Pump Mount SAE A
- Pilot Dia. 3-1/4″
- Bolt holes tapped 3/8″-16
- Bolt Spacing 4-3/16″ c/c
- Centerline Height 2-3/4″
- Base Mounting Holes Four 3/8″ dia.
- Base Mounting Pattern 2″ x 5″
- Size 6″ x 3.75″ x 5.3125″
- Shpg. 6 lbs.
