Description

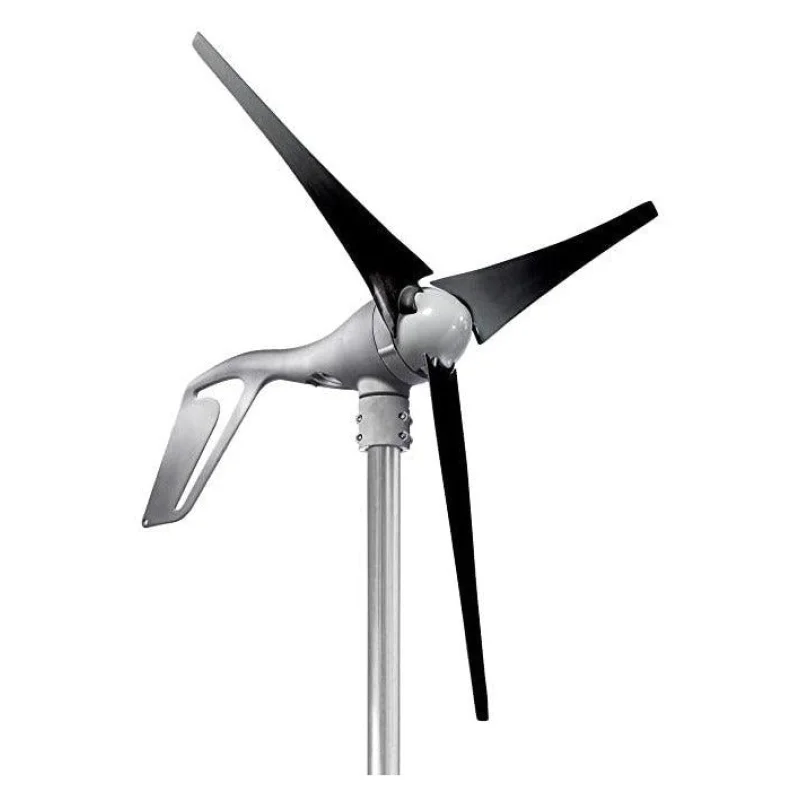

Primus Wind Power Air 30 Wind Turbine
- Advanced microprocessor technology for superior performance and high wind protection
- Durable blade design for optimal energy capture and quiet operation
- Produces 30kWh of energy per month
- Easily integrates with any existing PV system
- Provides nighttime power production
When you need energy, our AIR 30 delivers. It’s hands down the best energy choice for off-grid land-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection — you name it. With optimized software, AIR 30 consistently delivers energy where it matters. The AIR 30s heavy-duty design can withstand most high wind environments. The AIR 30 is an ideal turbine for hybrid combinations with solar PV. Not for use in marine environments. AIR 30 is built and backed by the worldwide leader in small wind.
Technical Specifications
| Energy |
Approx.30 kWh/mo at 5.8 m/s (13 mph) |
| Swept Area |
1.07 m2 (11.5 ft2) |
| Rotor Diameter |
1.17 m (46 in) |
| Weight |
5.9 kg (13 lb) |
| Shipping Dimensions |
686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed |
3.58 m/s (8 mph) |
| Voltage |
12, 24 and 48 VDC |
| Turbine Controller |
Mircoprocessor-based smart controller |
| Body |
Permanent mold cast aluminum |
| Blades |
(3) Injection-molded composite |
| Alternator |
Permanent magnet brushless |
| Overspeed Protection |
Electronic torque control |
| Survival Wind Speed |
40.2 m/s (90 mph) |
| Mount |
1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
| Wind Speed Operating Range |
3.6-22 m/s (8-49 mph) |
| Optimum Wind Speed Range |
11-15 m/s (25-32 mph) |
|
