Description

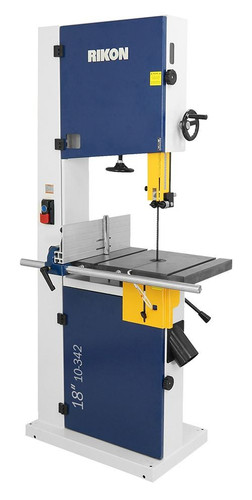

18″ Bandsaw 10-342 is an entry level machine. Ample 2 HP motor provides plenty of power behind the single 3,200 ft/min blade speed of the machine. Cast iron table includes a single ‘T’ slot for use with miter gauges (available separately) or other cutting jigs. Includes 120V electrical outlet on rear of machine. Machine requires 4-wire electrical plug.
- 13″ cutting capacity
- Spring loaded tool-less guide system – no tools need to quickly adjust the guide bearings
- Quick adjust 6″ tall fence system – adjust the fence to either side of the blade
- Quick adjust trunnion system – equipped with a large handle and locking arm for rapid adjustment
- Quick release blade tension
- Hinged blade guard with sight window
- Mfr.’s 5-year warranty
Volts: 220V, 60Hz, 1Ph
Horsepower: 2 HP TEFC
Amps: 7.5
Blade Speed: 3,280 FT/MIN
Cutting Capacity: 13″H x 17-1/2″W
Blade: 153″L
Width: 1/4″ – 1-3/8″
Table Size: 21-1/2″ x 15-3/4″
Left Side Extension: 4-3/8″ x 15-3/4″
Left Tilt: -10°
Right Tilt: 45°
Miter Gauge “T” Slot: (2) 3/4″ x 3/8″
Height to Floor: 35-1/2″
Fence Size: 20-7/8″ x 1-7/8″ x 6″
Overall size: 72-7/8″H x 38-1/2″W x 28-1/8″D
Base Size: 29-5/16″ x 18-1/8″
Dust Port: 2 @ 4″
Weight: 324 lbs.
Includes 153″ x 5/8″ , 3 TPI, blade.
