Description

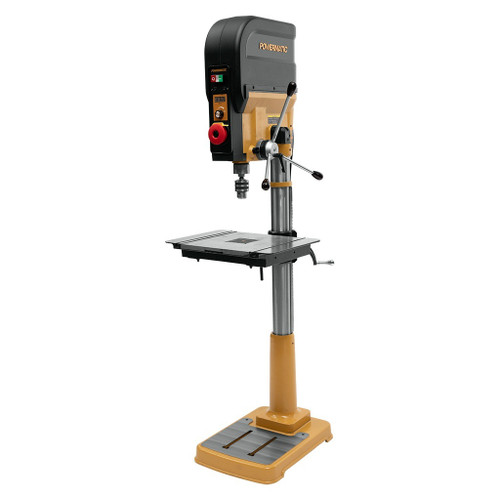

This 20″ variable speed drill press has gear-driven power that consistently and efficiently transfers torque for any project in any material. The removable cast table has a 45° rotation and the handles can be moved right or left for easily working small or large projects. A high-visibility laser pinpoints the drilling location for accuracy while the integrated LED light reduces shadows.
Motor: 1 HP, 115V, 8 Amps, 1 Phase
Spindle Speed: 150 – 3,600 RPM, Variable
Quill Diameter: 2.6″
Spindle Distance to Base: 45″
Spindle Distance to Table: 23″
Quill Diameter: 2.6″
Spindle Distance to Base: 45″
Spindle Distance to Table: 23″
Spindle Taper: MT2
Spindle Travel: 6″
Swing: 20″
Table Size: 20-1/2″L x 15-1/2″W
Table Tilt: 90° L/R
Base Size: 22-3/4″ x 16-3/8″ x 2-3/4″
Base Work Table: 11.81″ x 12.05″
Chuck Distance to Base: 41-1/4″
Chuck Distance to Table: 19-1/4″
Chuck Size: 5/8″
Column Diameter: 3-3/8″
Fence Size: 19-3/4″ x 2-5/8″
Overall size: 24.5″L x 20.5″W x 71.85″H
Weight 337 lbs.
Includes
fence
work stop
handles
table
arbor
chuck and key
wrenches
manual
