Description

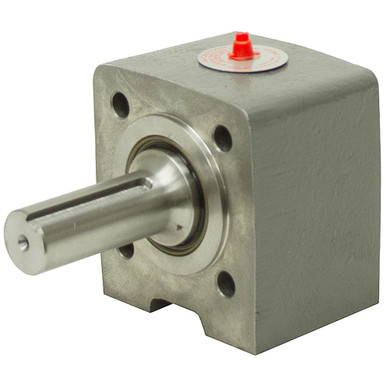

1″ KEYED INPUT/OUTPUT OVERHUNG LOAD ADAPTER
Brand new, Zero-Max model 410 overhung load adapter. Cast iron construction with ball bearings. Prevents wear on motor/pump components due to external overhung loads (axial and radial), provides solid mounting. Isolates from contamination in harsh environments. Allows removal of motor/pump while leaving load attached to shaft. Grease zerk for bearings.
SPECIFICATIONS
- Brand Zero-Max
- Model 410
- Input Shaft 1″ dia. female socket w/ 1/4″ keyway
- Input Mount 4 thru holes on 3-1/4″ B.C.
- Output Shaft 1″ dia. x 2-3/4″ w/1/4″ keyway
- Base Mount Four 3/8″-16 tapped holes, 2-5/16″ x 1-3/4″
- Maximum Speed 4400 RPM
- Size 3.5″ x 2.75″ x 3.875″
- Shpg. 9 lbs.
