Description

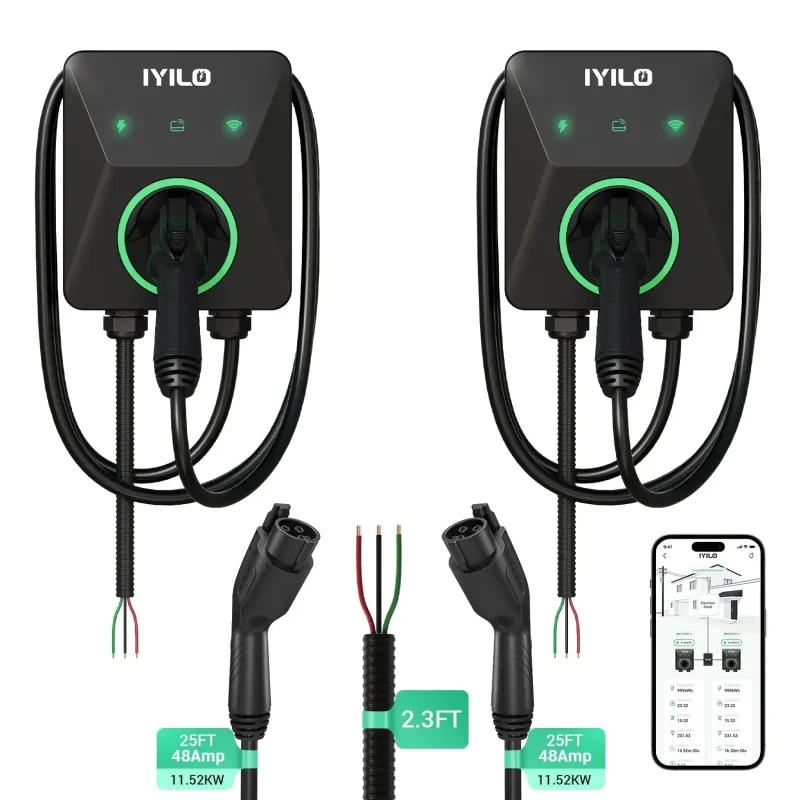

The IYILO Dual J1772 Bundle is a two-charger Level 2 setup with power sharing, built for households charging two non-Tesla EVs. Both units run on a single circuit and split available power intelligently, so you can charge two cars without a major electrical upgrade.
- Two 48A / 11.5kW hardwired chargers, each adding up to 46 miles of range per hour, with power sharing across both.
- Smart power sharing balances output between the two units on a shared circuit, preventing overload and avoiding a costly panel upgrade.
- Both chargers use the J1772 connector for full non-Tesla EV compatibility.
- Dual NTC temperature sensors and built-in GFCI breakers protect each unit against connector overheating.
- IYILO app manages both chargers, with scheduling, energy tracking, RFID, and OTA updates, in NEMA 4 enclosures with 25 ft ultra-flex cables.
Best for: Two-EV households with non-Tesla vehicles that want to charge both cars at home on a shared circuit without upgrading their service.
Specifications
| Configuration | Two chargers with power sharing |
| Charge level | Level 2 (240V) |
| Max output (each) | 48A / 11.5kW |
| Charging speed (each) | Up to 46 miles of range per hour |
| Power sharing | Intelligent load balancing across both units |
| Connectors | J1772 + J1772 (non-Tesla) |
| Installation | Hardwired (licensed electrician) |
| Cable length | 25 ft ultra-flex (each) |
| Connectivity | 2.4GHz Wi-Fi, RFID |
| App | IYILO app: multi-charger management, scheduling, energy tracking |
| Safety | Dual NTC temp sensors, built-in GFCI breakers |
| Enclosure rating | NEMA 4 (indoor/outdoor) |
| Certifications | ETL listed, ENERGY STAR |
| EV compatibility | All non-Tesla EVs and PHEVs |
| Warranty | 3-year (extended options available) |
Shipping, Warranty & Returns
- Shipping: Ships standard ground.
- Warranty: 3-year manufacturer warranty on both units, with 3.5-year and 4-year extensions available at checkout.
- Support: Hardwired install by a licensed electrician is required, with both units wired for power sharing. We can point you to install resources and IYILO support.
- Returns: 30-day no-questions-asked returns. Reach out before returning so we can route it correctly.
Frequently Asked Questions
How does power sharing work? The two chargers communicate and split the available current on a shared circuit. If both cars charge at once, each gets a balanced share. If only one is plugged in, it can draw more. This lets you run two chargers without doubling your electrical service.
Will it work with my cars? Both units use J1772 connectors, so they work with all non-Tesla EVs and plug-in hybrids. Tesla owners can use J1772-to-NACS adapters, or choose a NACS bundle.
What install does it need? Hardwired installation by a licensed electrician, configured for power sharing across both units. Your panel capacity determines the combined charging speed.
Are they weatherproof? Yes. Both have NEMA 4 enclosures rated for indoor or outdoor use, with temperature sensors and built-in GFCI breakers.
