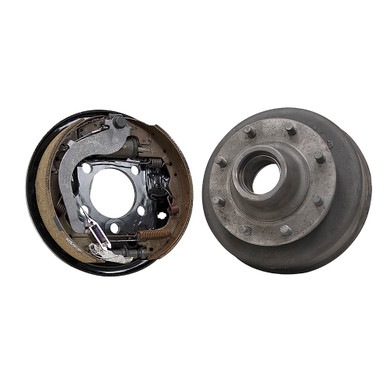

HYDRAULIC BRAKE ASSEMBLIES
New, Dexter free backing hydraulic trailer brakes with 8″ hole on hubs with Bendix brake components. Each brake is 12″ x 2-1/2″ giving 65 sq. in. of lining for safe stopping of large loads. Mechanical parking brake. Sold in sets with one right and one left assembly. Bearings and bolts included.
SPECIFICATIONS
- Drum I.D. 12″
- Drum Pilot dia. 6″
- Backing Plate Mount Five 3/4″ dia. Holes on 5-1/2″ B.C. w/ 4″ I.D. pilot
- Hub Mount 8 lugs on 8″ B.C.
- Hub Bolts 5/8″-18 TPI x 1-1/4″ long
- Inside Bore 3-1/4″ dia.
- Inner Bearing JLM506849 2.165″(55mm)
- Outer Bearing LM501349 1.625″(41.275mm)
- Rating 6000 lbs.
- Size 13″ dia. x 10-1/2″ tall
- Shpg. 190 lbs.
