Description

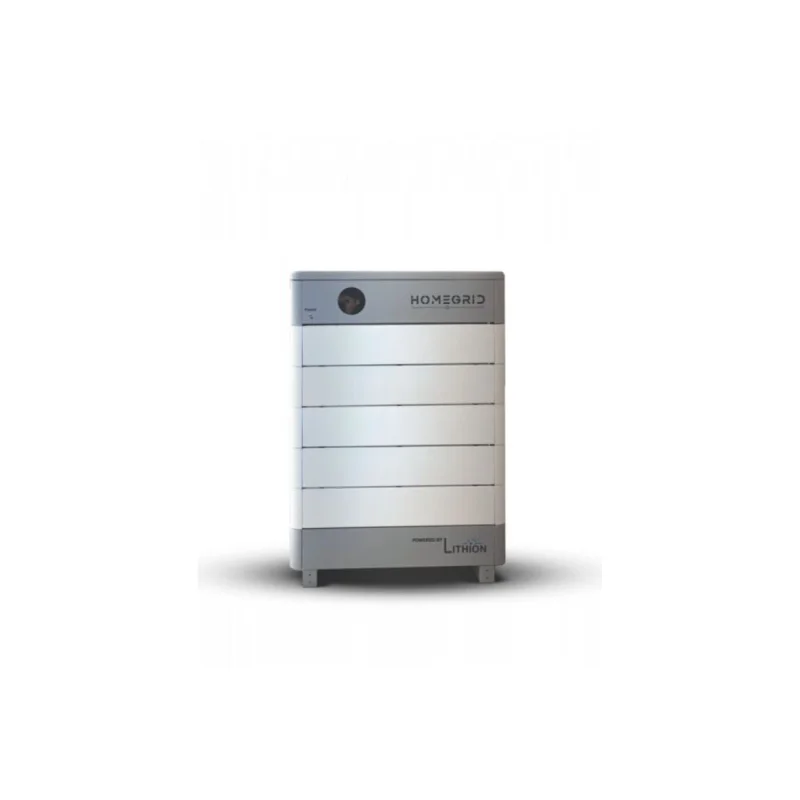

This home battery is modular with 4.8 kWh increments, providing a capacity range of 9.6-38.4 kWh per Stack. This also allows for easy servicing and future expansion. With continuous output at up to 15 kW, and a surge of up to 24 kW for 10 seconds, true full-home backup is here.
What’s Included:
-
1 x BMS/Base
-
2 x 4.8kWh Module
Product Specifications:
| Stack’D Series Specifications | |
|---|---|
| Battery Chemistry Technology | Lithium Iron Phosphate |
| Total Energy [kWh] | 9.6kWh |
| Continuous Power Output [kW] | 9.6 |
| Capacity [Ah] | 200 |
| Nominal DC Voltage [V] | 48 |
| DC Voltage Range [V] | 46-56 |
| Weight [lbs] | 304 |
| Height | 25.25in |
| Mounting Options | Floor Standing |
| Certificates | UL 1642, UL 1973, UN 38.3 |
| Warranty | 10 Years |
