Description

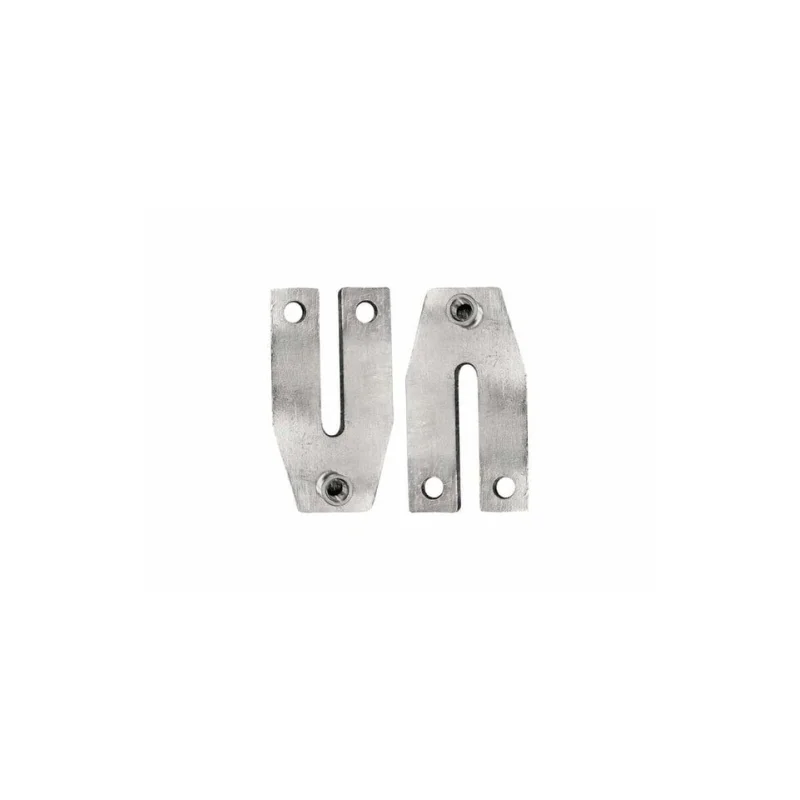

Sol-Ark 15k Busbar Pair
When installing a single Stackd Series battery with a Sol-Ark 15K, HomeGrid highly recommend using this busbar pair. This is because the Stackd Series battery is the only battery on the market that outputs enough power from a single unit for the Sol-Ark 15K. This busbar pair can be placed on the 15K battery landings to easily connect the battery cables (single + and single -) and maximize the system output.
Specifications
- Material: Red Copper (T2)
- Surface treatment: Nickel-plated
- Resistivity [m]: 0.0177
- Tensile strength [N/mm2]: 215
- Vickers hardness: 55
- Ampacity [A @ 25C]: 620
- Ampacity [A @ 40C]: 500
- Compatibility: Sol-Ark 15K
- M8 Nut (5/16″) going to HomeGrid Battery
