Description

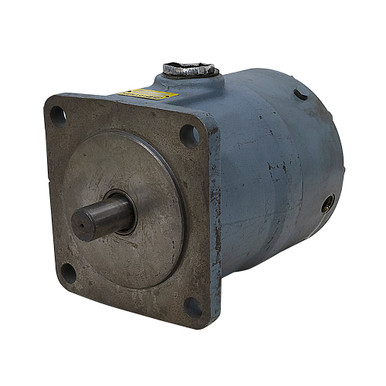

FIXED DISPLACEMENT CHECKBALL SPLIT-FLOW-COVER PISTON PUMP
Old unused inventory, Dynex PF4021-1736 fixed displacement checkball split-flow-cover piston pump. Bi-directional shaft rotation, provide constant direction of output flow regardless of the direction of drive shaft rotation.
SPECIFICATIONS
- Brand Dynex
- Model PF4021-1736
- Family PF4000 series
- Rotation Reversible
- Pressure:
6000 PSI cont.
8000 PSI int. - Speed:
1800 RPM cont.
2400 RPM int. - Flow:
1.0 GPM min. @ 1200 RPM
1.5 GPM max. @ 1800 RPM - Mount Four bolt SAE D
- Shaft 1-1/4″ dia. x 2″ long w/ 5/16″ keyway
- Inlet Ports 1-1/4″ NPT
- Outlet Port SAE 8
- Size 12″ x 8″ x 8.5″
- Shpg. 118 lbs.
