Description

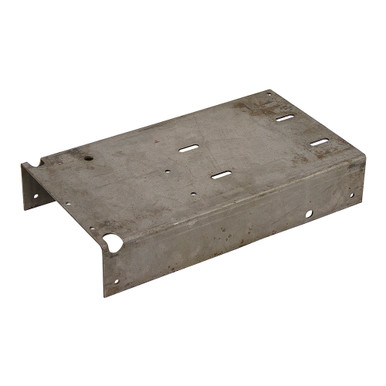

ENGINE AND COMPRESSOR MOUNTING PLATE FOR AIR RESERVOIR
Unused old inventory. Engine and air compressor mounting plate for air reservoir. Some surface rust and abbrasions from storage. 3-1/16″ long 90 degree bends along the length of each side. Two 3/4″ dia. notches for accomodating a handle on the compressor mount side of mounting plate. The 1/2″ diameter holes on side 1 and side 2 are directly opposite one another. The 1/4″ diameter holes on side 1 and side 2 are directly opposite one another. Constructed of 11 gauge unpainted steel.
SPECIFICATIONS
- Primary Mounting Side
- Engine Mount Four Slots for 5/16″ dia. bolt
- Engine Mount Dimensions 6-7/8″ to 7-1/4″ x 3-1/8″ centers
- Compressor Mount Four 1/4″ dia. holes
- Compressor Mount Dimensions 5-3/4″ x 2-1/2″ centers
- Handle Notches Two 3/4″ dia. holes on 7-3/4″ centers
- Additional Mounts
One 1/2″ dia. hole
One 13/32″ dia. hole - Side 1
One 1/2″ dia. hole
Two 1/4″ dia. holes on 14-1/2″ centers
Four 3/32″ dia. holes on 6-1/4″ x 1-1/2″ centers - Side 2
One 1/2″ dia. hole
Two 1/4″ dia. holes on 14-1/2″ centers - Size 16″ x 9″ x 3.0625″
- Shpg. 10 lbs.
