Description

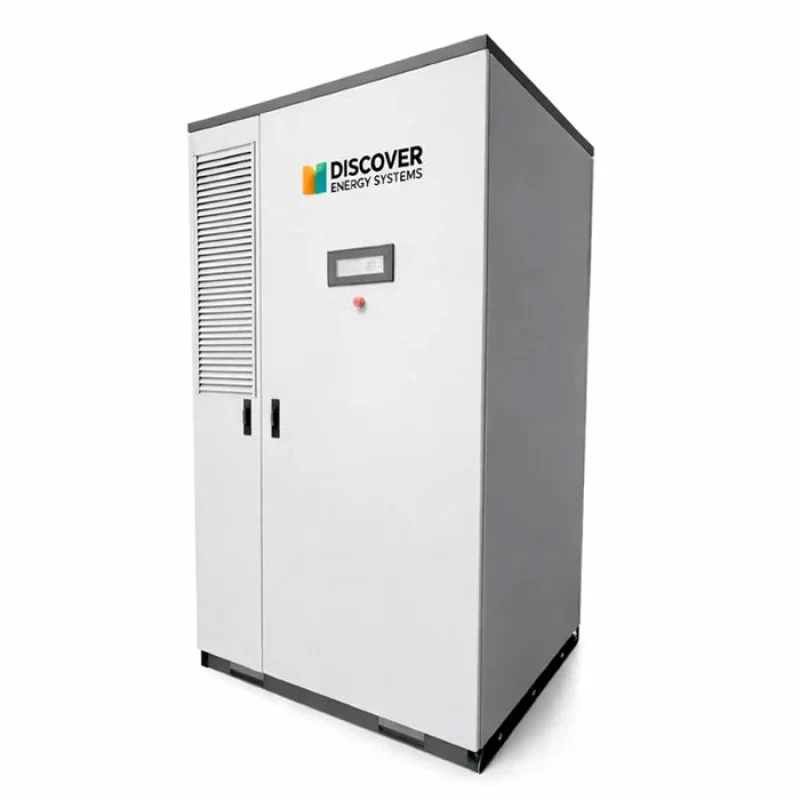

Discover Energy HV Energy Storage System | 209kWh | NEMA 3R | LiFePO4
The Discover Energy AES 210HV is a high-voltage, liquid-cooled commercial energy storage system built for community, commercial, and industrial applications where reliability and scalability aren’t optional. Delivering 209 kWh of usable LiFePO4 energy in a NEMA 3R outdoor-rated enclosure, it ships pre-assembled as a complete, ready-to-deploy solution dramatically cutting installation time and on-site labor costs compared to traditional BESS builds.
At the core of the AES 210HV is a 665.6V nominal high-voltage architecture paired with integrated liquid cooling and heating, keeping the battery operating efficiently across a wide range of environmental conditions. The system pairs directly with leading C&I hybrid inverters including Sol-Ark, Solis, and others removing the need for separate microgrid controllers, EMS controllers, or additional transformers. LYNK II Gateway integration enables closed-loop charging communication with compatible inverters, along with remote configuration and real-time monitoring via LYNK Cloud.
Safety is built in at every layer: aerosol-based thermal fire suppression, passive deflagration venting, continuous temperature and smoke monitoring, and UL 9540 Listed / UL 9540A Large Scale Fire Tested compliance. The AES 210HV is designed for a 20-year service life and is scalable from a single 209 kWh cabinet up to 4 MWh, making it a practical choice for projects that need room to grow from grocery stores and EV charging stations to microgrids and industrial facilities.
AES 210HV Specs
Battery Chemistry: Lithium Iron Phosphate (LiFePO) Nominal Energy Capacity: 212 kWh (209 kWh Usable) System Nominal Voltage: 665.6V Operating Voltage Range: 603.2V 738.4V Cell Capacity: 320 Ah (314 Ah Usable) Max. Continuous Current: 157A (C/2) Continuous Power: 104.5 kW (25C, 665.6VDC, C/2) DC Connections: Four (+) | Four () Terminals (Each Fused) Inverter Compatibility: Hybrid Inverter Technology (CANbus) Communications: LYNK II Gateway (Inverter Closed-Loop | Cloud Monitoring) Dimensions (W x D x H): 1300 x 1300 x 2374 mm (51.2 x 51.2 x 93.4 in) Net Weight: 2,490 kg (5,490 lb) Material & Finish: Corrosion Resistant Painted Steel Thermal Management: Integrated Liquid Cooling/Heating System Auxiliary AC Input: 240VAC Operating Conditions: -30C to 55C (-22F to 130F) Ingress Rating: IP55 / NEMA 3R (Outdoor Cabinet) Noise Level: 75 dBA @ 1m (30C) Scalability: 200 kWh to 4 MWh Certifications: UL 9540 Listed, UL 9540A Large Scale Fire Tested
AES 210HV Features
- 209 kWh Usable LiFePO Storage: High-density lithium iron phosphate chemistry delivers 209 kWh of usable energy with exceptional cycle life, thermal stability, and long-term reliability for demanding commercial and industrial applications.
- High-Voltage Architecture: 665.6V nominal system voltage reduces current losses and improves overall efficiency, enabling seamless integration with high-voltage hybrid C&I inverters without additional transformers or controllers.
- Integrated Liquid Cooling & Heating: Active thermal management maintains optimal battery performance across a wide operating range of -30C to 55C (-22F to 130F), making it suitable for harsh outdoor environments year-round.
- Pre-Assembled Outdoor Cabinet: Ships as a complete, ready-to-deploy NEMA 3R / IP55-rated outdoor enclosure built from corrosion-resistant painted steel, dramatically reducing installation time and on-site labor costs.
- LYNK II Gateway with Cloud Monitoring: Enables closed-loop CANbus communication with compatible hybrid inverters for optimized charging performance, plus remote configuration and real-time monitoring via LYNK Cloud.
- Multi-Layer Safety System: Integrated aerosol-based fire suppression, passive deflagration venting, and continuous temperature and smoke monitoring provide comprehensive protection, backed by UL 9540 Listed and UL 9540A Large Scale Fire Tested certification.
- Scalable from 200 kWh to 4 MWh: Modular platform supports project growth without extensive redesigns, making the AES 210HV a practical long-term investment for sites with expanding energy storage needs.
- Simplified C&I Installation: By combining critical components into a single integrated system, the AES 210HV eliminates the need for separate microgrid controllers, EMS controllers, and additional transformers bringing residential-style installation simplicity to commercial-scale projects.
