Description

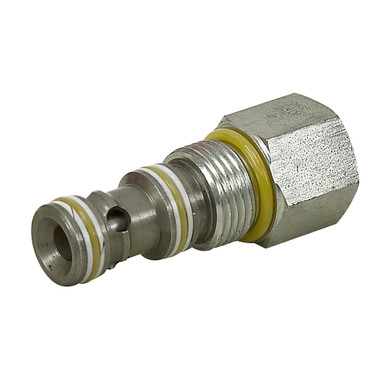

HYDRAFORCE DIRECTIONAL CONTROL VALVE EP10-S38-O-P-80
New, Hydraforce. A poppet-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
The EP10-S38 is a spring-biased poppet valve which will block 1 to 2 or 2 to 1 until pressure at 1 or 2 exceeds the cumulative pressure at 3 and bias spring. With no pressure at 3, flow will be allowed from 1 to 2 or 2 to 1 once the bias spring force is overcome with pressure at 1 or 2. When the element is in closed state, the ratio of areas 1 and 2 is 1:1, and the ratio of areas 1 or 2 to 3 is 1:2.
SPECIFICATIONS
- Brand HydraForce
- Model EP10-S38-O-P-80
- Type Piloted, Poppet Type Directional Control Valve
- Pressure Rating 5000 PSI max.
- Pressure Setting 80 PSI bias spring
- Flow 30 GPM max.
- Fits into VC10-S3 Cavity
- Features Polyurethane seals, Cartridge Only
- Overall Size 2-11/16″ x 1-1/8″ dia.
- Shpg. 0.5 lbs.
