Description

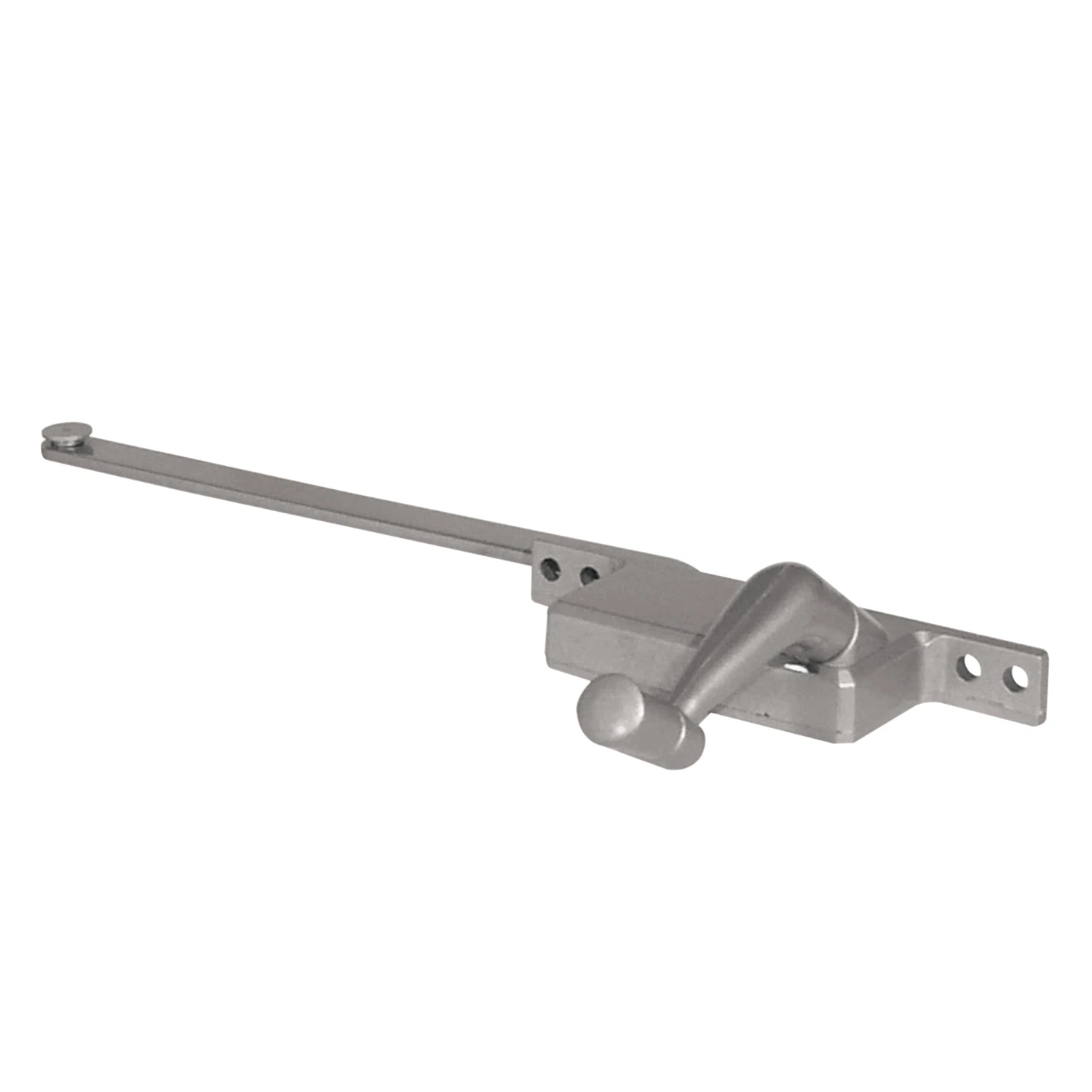

This casement window operator is a right-handed aluminum square body type. It has a 9 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. on center.
- Right handed square body crank handle (viewed from inside looking out)
- Mounting holes are 3-7/8 in. and 4-3/4 in. on center
- Arm is 9 in. from middle of the guide button to the middle of the crank operator while closed
- Heavy duty diecast zinc construction with an aluminum finish
| SKU | 658476 | UPC | 049793035202 |
| Weight | 0.92 lbs | Package Width | 3.8 in |
| Package Length | 1.45 in | Package Height | 13.1 in |
| Model Number | H 3520 | Brand | Prime Line |
| Manufacturer Name | PRIME LINE PRODUCTS |
