Description

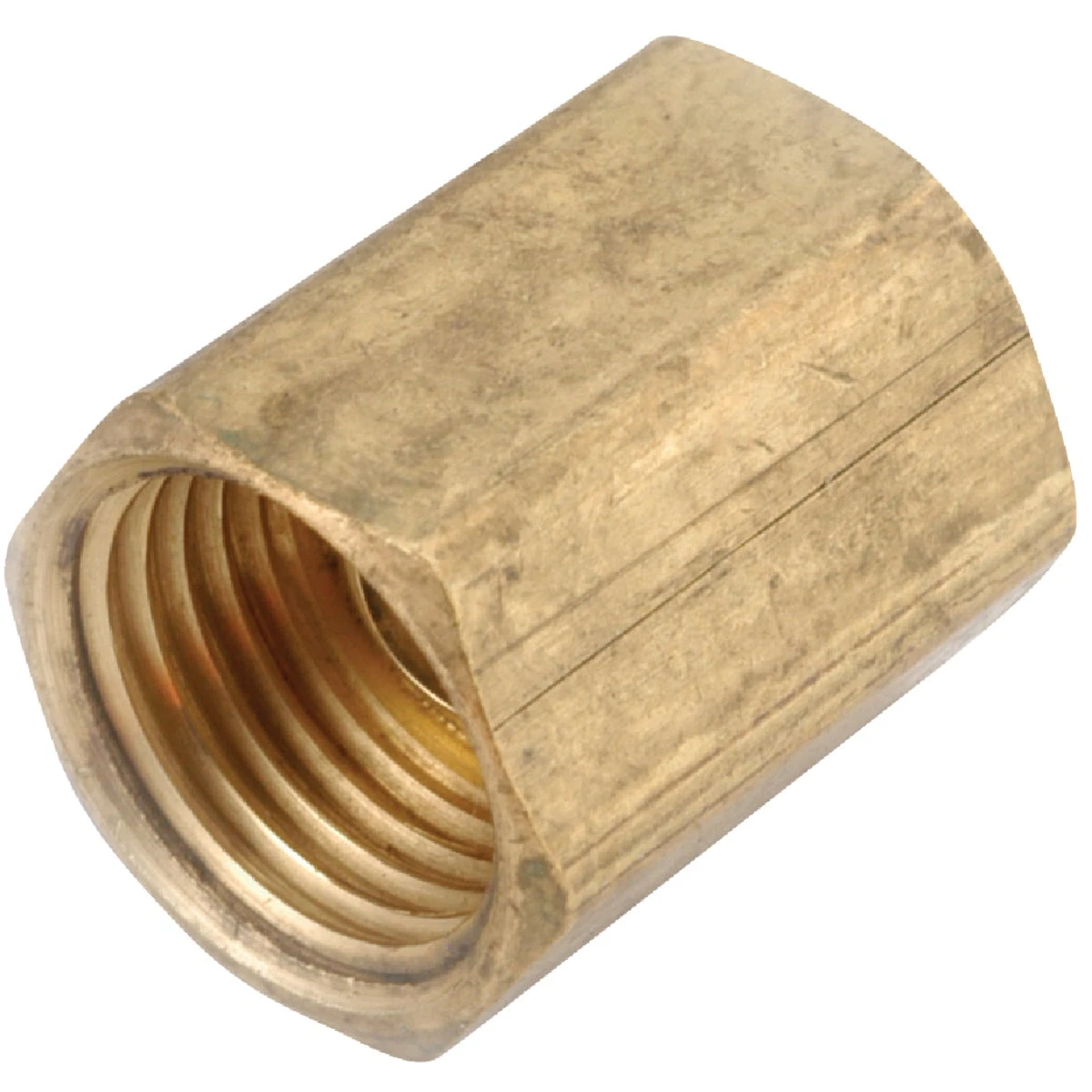

Anderson Metals 3/16″ Brass Inverted Flare Union. It connects two pipes with inverted flare fittings. Made from durable brass, this union withstands a maximum working temperature of 73 degrees Fahrenheit and a pressure rating of 1900. Bagged.
- Two Piece Construction – Nut And Body
- Use With Copper, Brass, Aluminum, Or Steel Tubing
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Seats And Threads Are Recessed, Protecting Them
- Shorter Overall Length, for Limited Space Applications
- Shorter Nut Allows Tubing To Be Bent Closer To Fitting
- Fair Vibration Resistance
- Resists Mechanical Pullout
- Easy To Disassemble, And Can Be Reassembed Many Times, With No Effect On The Seal
- Primary Uses: Liquids, Gases And Hydraulic Brake Systems
- To Assemble:
- 1. Cut Smooth, Square End On Tubing
- 2. Slide Nut On Tube – Threads Facing End
- 3. Flare End Of Tube
- 4. Thread Nut Onto Body Until Snug, Then 1/6th Turn
WARNING: This product can expose you to lead, a chemical known to the State of California to cause cancer and reproductive harm. www.P65Warnings.ca.gov
| SKU | 776633 | UPC | 719852935513 |
| Weight | 0.02 lbs | Package Width | 0.6 in |
| Package Length | 0.7 in | Package Height | 0.6 in |
| Model Number | 54342-03 | Brand | Anderson Metals |
| Manufacturer Name | ANDERSON METALS CORP |
