Description

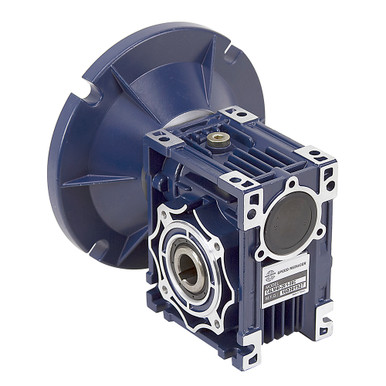

Aluminum Right Angle Worm Gear Reducer, 40 mm C.D., 15/1, 56C Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).
SPECIFICATIONS
- Brand World Wide Electric
- Model Number CALM40-15/1-56C
- Box Size 40 mm Center Distance
- Gear Ratio 15:1
- Output RPM @ 1750 RPM Input 117 RPM
- Input Hp (1.0 S.F.) 0.83 Hp Max
- Output Torque 370 in.-lb. Max
- Over-Hung Load 346 lbs. Max
- Output Shaft Thrust Load 69 lbs. Max
- Efficiency 83 %
- Motor Mount 56C
- Input Bore 5/8" keyed, 3/16" keyway
- Output Bore 3/4"keyed, 3/16"keyway
- Top & Bottom Mount 70mm x 60mm
- Back Mount 90mm x 60mm
- Overall Size 5.37" x 6.5" x 6.75"
- Shpg. 6.2 lbs.
