Description
High-performance 60cc chainsaw for professional forestry work

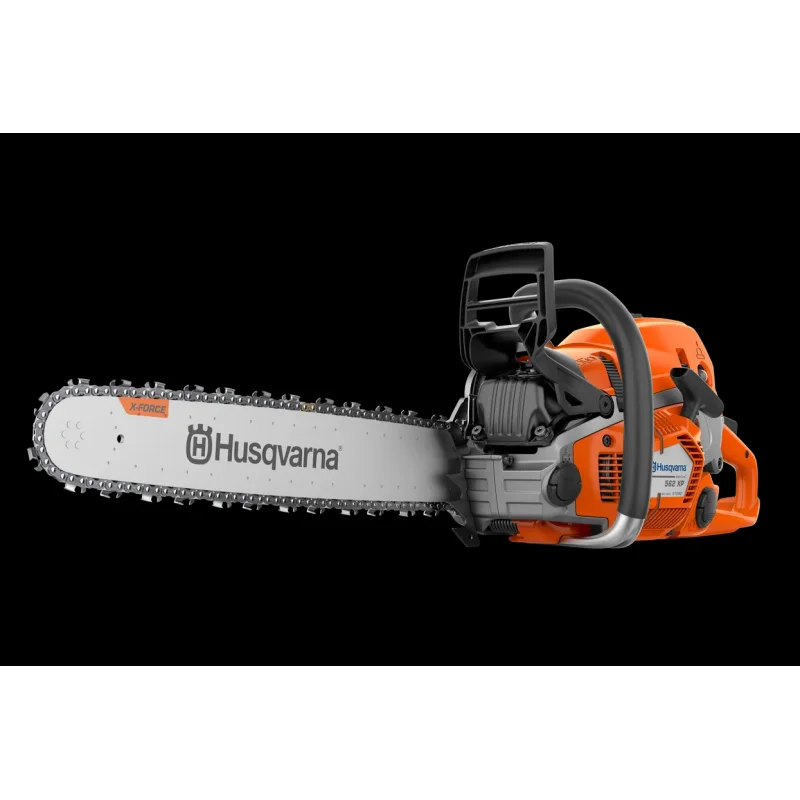

Husqvarna 562XP is developed for professional loggers, tree care workers and skilled land owners. The saw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation with large air filter and the ability to fit 28″ bars. Our unique X-Torq engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission.
| Engine | 24″ RSN 3/8″ 1,3 mm C83SKU: 970502106 | 18″ RSN 3/8″ 1,3 mm C83SKU: 970502102 | 18″ RSN 3/8″ 1,5 mm C85SKU: 970502103 | 20″ RSN 3/8″ 1,3 mm C83SKU: 970502104 | 20″ RSN 3/8″ 1,5 mm C85SKU: 970502105 | 24″ RSN 3/8″ 1,5 mm C85SKU: 970502115 | 28″ RSN 3/8″ 1,3 mm C83SKU: 970502122 | 28″ RSN 3/8″ 1,5 mm C85SKU: 970502123 | 18″ RSN 3/8″ 1,6 mm H83SKU: 970502128 | 24″ US Lightweight RSN 3/8″ 1,3 mm C83SKU: 970502154 | 28″ US Lightweight RSN 3/8″ 1,3 mm C83SKU: 970502158 |
| Chain speed at max power | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts | 69.9 fts |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder displacement | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm | 59.8 cm |
| Output shaft power1 | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp | 4.7 hp |
| Torque, max. | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm | 3.65 Nm |
| Torque, max. at rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm | 8,100 rpm |
| Clutch engagement speed (120) | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm | 4,300 rpm |
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Idling speed | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm |
| Ignition module air gap | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in |
| Maximum power speed | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm |
| Spark Plug | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H |
| Equipment | |||||||||||
| Recommended bar length, min | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in |
| Pitch | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ |
| Recommended bar length, max | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in |
| Chain type | C83 | C83 | C85 | C83 | C85 | C85 | C83 | C85 | H83 | C83 | C83 |
| Bar length | 60 cm | 45 cm | 45 cm | 50 cm | 50 cm | 60 cm | 70 cm | 70 cm | 45 cm | 60 cm | 70 cm |
| Bar length (inch) | 24 in | 18 in | 18 in | 20 in | 20 in | 24 in | 28 in | 28 in | 18 in | 24 in | 28 in |
| Gauge | .058″ | .058″ | .058″ | .058″ | |||||||
| Dimensions | |||||||||||
