Description

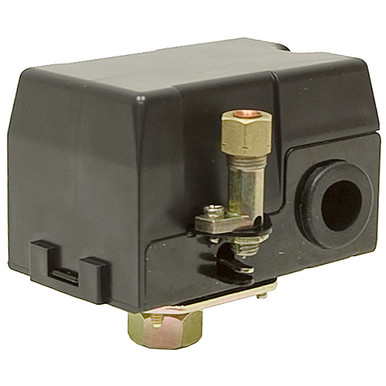

AUTOMATIC PRESSURE SWITCH
Brand new, LEFOO LF10-L1 automatic pressure switch for compressed air systems. Automatically turns electric motor ON or OFF at set values. Adjustable differential. Unloader port 1/4″ OD copper tubing which allows compressor to start without back pressure load. Sturdy plastic housing. Manual off switch. Single port.
SPECIFICATIONS
- Brand Lefoo
- Model Number LF10-L1
- Contact Rating
1-1/2 HP, 20 amps @ 120 Volt AC
2 HP, 12 amps @ 240 Volt AC
3 HP, 9.6 amps @ 240 Volt AC 3 Phase
1/4 HP, 8.6 amps @ 32 Volt DC
1/4 HP, 3.1 amps @ 120 Volt DC
1/4 HP, 1.6 amps @ 240 Volt DC - Port 1/4″ NPT
- Factory Setting
ON (Cut-In) 95 PSI
OFF (Cut-Out) 125 PSI - Minimum ON (Cut-in) 35 PSI
- Maximum OFF (Cut-Out) 150 PSI
- Differential 30-40 PSI
- Size 3.75″ x 3.375″ x 3.25″
- Shpg. 0.85 lb.
