Description

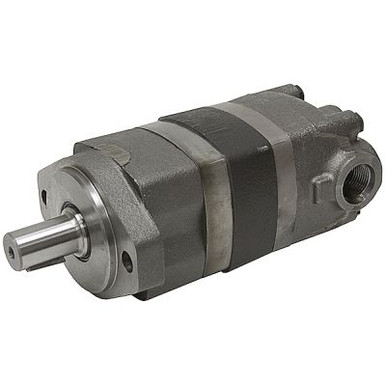

9.6 cu in CHAR-LYNN 104-1064 HYD MOTOR
Brand new CHAR-LYNN 2000 series hydraulic motor. Geroler power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.
SPECIFICATIONS
- Disp. 9.6 cu. in. / rev.
- Motor Type Geroler
- Pressure:
3000 PSI cont.
3750 PSI int. - Torque:
4040 in-lbs. cont.
5040 in-lbs. int. - Speed:
477 RPM cont.
713 RPM int. - Flow:
20 GPM cont.
30 GPM int. - Rotation Reversible
- Mount 2 bolt SAE A
- Shaft 1-1/4″ dia. x 2-3/16″ long with 5/16″ keyway, tapped 3/8-16
- Ports SAE 12
- Case Drain SAE 4
- Size 7.75″ x 5.125″ x 4.25″
- Shpg. 28 lbs.
