Description

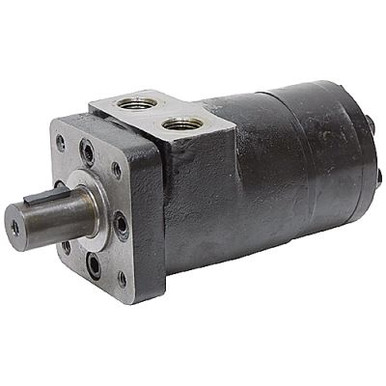

9.51 cu in DYNAMIC BMPH160H4KP HYD MOTOR
Brand new DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61004
- Build Number BMPH-80-H4-K-P
- Disp. 9.51 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
2031 PSI cont.
2538 PSI int. - Torque:
2673 in-lbs. cont.
3275 in-lbs. int. - Speed:
383 RPM cont.
475 RPM int. - Flow:
15.9 GPM cont.
19.8 GPM int. - Rotation Reversible
- Mount 4 bolt 3.25″ bolt circle
- Shaft 1″ dia. x 1.57″ w/1/4″ Woodruff key, tapped 1/4-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 6-1/8″ x 3-1/4″ x 3-1/4″
- Shpg. 17 lbs.
