Description
82.59:1 SIZE 97 5 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL97-80/1-182/4TC
- Box Size 97
- Stages 3
- Nominal Ratio 80:1
- Actual Ratio 82.59:1

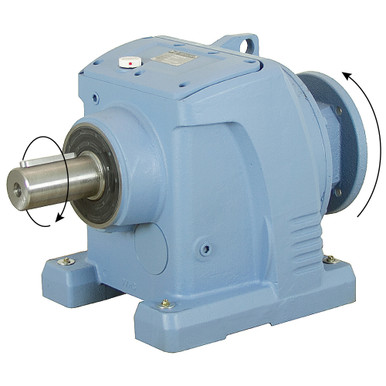

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 21 RPM
- Input Hp 5 Hp Max
- Output Torque 13775 in.-lbs. Max
- Over-Hung Load 4080 lbs. Max
- Service Class II
- Motor Mount 184TC
- Output Shaft 2.375″ dia. x 4.72″ long keyed, 5/8″ wide keyway, shaft end tapped 3/4″-11
- Base Mount Four 0.87″ holes on 12.2″ x 9.84″ centers
- Shpg. 255 lbs.
