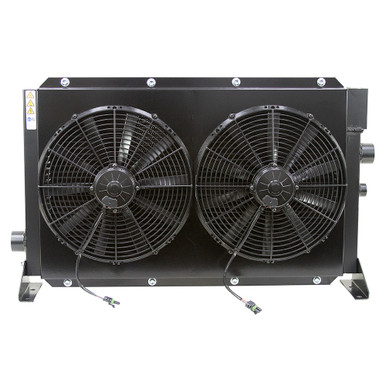

80 GPM Oil Cooler w/12 Volt DC Fan and Internal Bypass AKG DCS60-12-BP65

Description

80 GPM AKG DCS60-12-BP65 Oil Cooler w/12 Volt DC Fan and Internal Bypass
Brand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections, with internal pressure bypass and mounting tabs.

SPECIFICATIONS

• Manufacturer AKG
• Model Number DCS60-12-BP65
• Pressure 264 PSI max.
• Temperature 264 F° max.
• Construction Aluminum
• Flow 80 GPM
• Fan Motor Voltage 12 Volts DC
• Amps 19
• Heat Removed Based On 50 F°
  Entering Temperature Difference (BTU/HR) 79717
• Airflow Direction Pull
• Port Size SAE 20
• Drain/Temperature Sensor Port Size SAE 8
• Mount Eight 7/16″ slotted holes on 8.86″ x 20.9″ centers
• Overall Depth (in.) 7.2
• Overall Width (in.) 35.43
• Overall Height (in.) 22
• Shpg. 121 lbs.
