Description

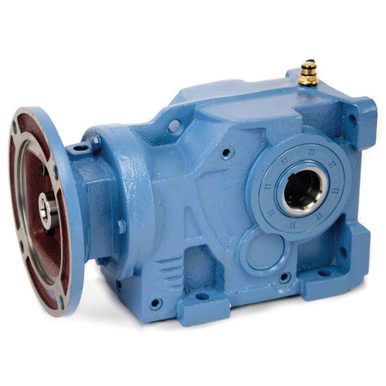

80.07:1 Size 97 14.56 HP Helical Bevel Gear Reducer WWE KHN97-80/1-H-213/5TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN97-80/1-H-213/5TC
- Box Size 97
- Gear Stages 3
- Nominal Ratio 80:1
- Actual Ratio 80.07:1
- Output RPM @ 1750 RPM Input 22 RPM
- Input HP 14.56 HP max.
- Output Torque 38060 in.-lbs. max.
- Over-Hung Load 8180 lbs. max.
- Motor Mount 213/5TC
- Output Bore 2-3/4″ Hollow Keyed, 5/8″ Keyway
- Horizontal Foot Mount Four 1.02″ holes on 9.45″ x 9.45″ centers
- Vertical Foot Mount Four 1.02″ holes on 9.45″ x 11.61″ centers
- Cross Reference SEW K97
- Size 21.83″ x 11.81″ x 16.42″
- Shpg. 368 lbs.
