Description

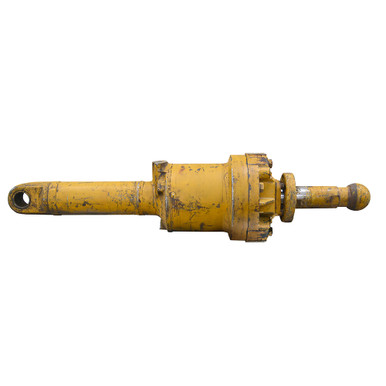

8″ x 4.5″ x 3″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 73061763. Two bolt manifold. Rod end has a six bolt, round mounting flange.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 8″ x 4.5″
- Gland Retainer Bolt on
- Pressure 2500 PSI max.
- Rod Dia. 3″
- Rod Thickness 3″
|
- Ports CODE 61 FLANGE 12
- Manifold Mount 1/2″-20 TPI on 4.084″ centers
- Retracted Length 46.5″
- Gland Face to Rod Pin Center 12.5″
- Shpg. 359 lbs.
|
| END MOUNTINGS |
- Rod End Ball
- Ball Width3.715″
- Ball O.D. 2.625″
- Mounting Flange Dia. 6.625″
- Mounting Flange Thickness 1.306″
- Bolt Holes 0.932″ on 4.937″ bolt circle
|
- Base End Tang
- Width 2.975″
- Pin-Center-To-Tang-End 1.945″
- Pin Hole 2″
|
