8.54"(217mm) x 16.375"(416mm) x 4.25"(108mm) Double Acting Hydraulic Cylinder 410803

8.54″(217mm) x 16.375″(416mm) x 4.25″(108mm) Double Acting Hydraulic Cylinder 410803

Original price was: $699.95.Current price is: $139.99.

SKU: 904801 Category:

Description

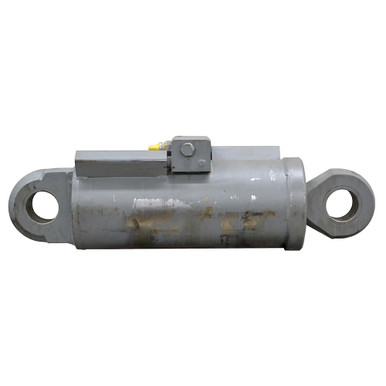

8.54″(217mm) x 16.375″(416mm) x 4.25″(108mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 410803.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8.54″(217mm) x 16.375″(416mm)
  • Barrel Thickness 0.480″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.25″
  • Ports SAE 12
  • Retracted Length 31.5″
  • Gland Face to Rod Pin Center 4.25″
  • Shpg. 432 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.49″
  • Pin-Center-To-Tang-End 3.46″
  • Pin Hole 3.375″
  • Base End Tang
  • Width 3.49″
  • Pin-Center-To-Tang-End 3.73″
  • Pin Hole 3.375″
