8.5" x 73.375" x 5" Double Acting Hydraulic Cylinder 815D0304

8.5″ x 73.375″ x 5″ Double Acting Hydraulic Cylinder 815D0304

Original price was: $1,249.95.Current price is: $249.99.

SKU: 904860 Category:

Description

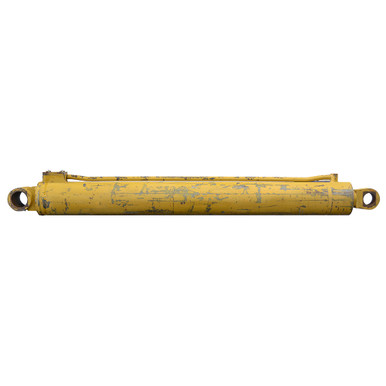

8.5″ x 73.375″ x 5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 815D0304.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8.5″ x 73.375″
  • Barrel Thickness 0.4792″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI
  • Rod Dia. 5″
  • Rod Thickness 0.568″
  • Ports 6.125″ x 4″ w/ four, 1/2″-13 bolt holes on 3.875″ x 3.125″ centers and 1″ port hole
  • Retracted Length 97.5″
  • Gland Face to Rod Pin Center 5.375″
  • Shpg. 839 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3″
  • Pin-Center-To-Tang-End 3.09″
  • Pin Hole 3-1/2″
  • Base End Crosstube
  • O.D. 6.5
  • Width 8.25
  • Pin Hole 4-1/2″
