Sale!

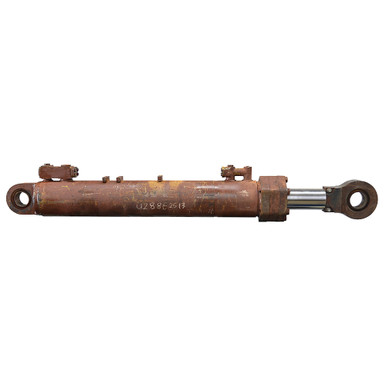

8.5" x 51.75" x 6" Double Acting Hydraulic Cylinder U288E2513

8.5″ x 51.75″ x 6″ Double Acting Hydraulic Cylinder U288E2513

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904893 Category:

Description

8.5″ x 51.75″ x 6” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder U288E2513. Both ends of the cylinder are double ported for a cushioning system.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 8.5″ x 51.75″
  • Barrel Thickness 1″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 6″
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 95.75″
  • Gland Face to Rod Pin Center 20.5″
  • Shpg. 1731 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 4.49″
  • Pin-Center-To-Swivel Eye-End 5.37″
  • Swivel Eye Width 3.93″
  • Pin Hole 4-1/2″
  • Base End Swivel Eye
  • Width 4.16″
  • Pin-Center-To-Swivel Eye-End 4.6″
  • Swivel Eye Width 3.5″
  • Pin Hole 4″
