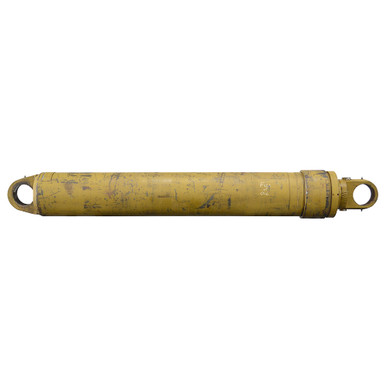

8.5" x 107.875" Double Acting Two-Stage Telescoping Hydraulic Cylinder

8.5″ x 107.875″ Double Acting Two-Stage Telescoping Hydraulic Cylinder

Original price was: $995.95.Current price is: $199.19.

SKU: 904384 Category:

Description

8.5″ x 107.875″ DOUBLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Double acting two stage, telescoping hydraulic cylinder. Dart numbers on cylinder 90-40213.

SPECIFICATIONS
  • Double Acting
  • Main Cyl Bore x Total Stroke 8.5″ x 107.875″
  • Thickness 0.632″
  • Number of Stages 2
  • Pressure 2000
  • Rod Dia. 3.937″(100mm)
  • Extend Port SAE 20
  • Retract Port SAE 16
  • Retracted Length 74.75″
  • Shpg. 982 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.98″
  • Pin-Center-To-Tang-End 3.31″
  • Pin Hole 4.73″(120mm)
  • Base End Tang
  • Thickness, Max 2.98″
  • Pin-Center-To-Tang-End 3.68″
  • Pin Hole 4.73″(120mm)
