Description

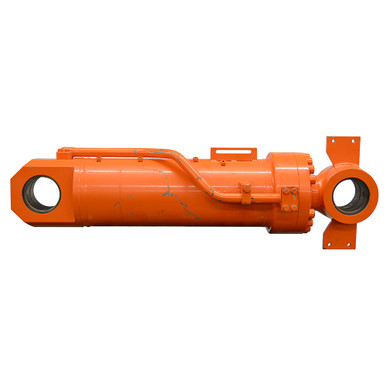

8.436″(215mm) x 24″(610mm) x 5.12″(130mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model D4D005HD.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 8.436″(215mm) x 24″(610mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 5.12″(130mm)
|
- Ports CODE 62 FLANGE 16
- Retracted Length 43.875″
- Gland Face to Rod Pin Center 6″
- Shpg. 784 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 6.527″
- Pin-Center-To-Tang-End 4.356″
- Pin Hole 4.728″(120mm)
|
- Base End Tang
- Width 6.5″
- Pin-Center-To-Tang-End 4.117″
- Pin Hole 4.728″(120mm)
|
