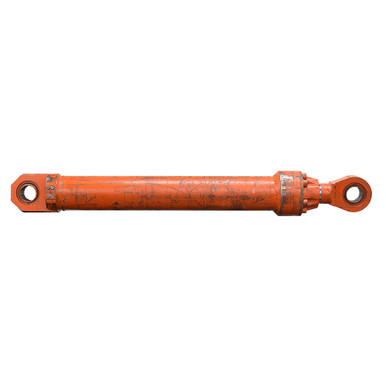

Name: 8.43"(215mm) x 58.5"(1485.9mm) x 5.91"(150mm) Double Acting Hydraulic Cylinder 688481
Brand: toolingsupplyoutlet.com
SKU: 904386
Price: 349.99 USD
Availability: InStock

8.43″(215mm) x 58.5″(1485.9mm) x 5.91″(150mm) Double Acting Hydraulic Cylinder 688481

SKU: 904386 Category: hot sale

Description

8.43″(215mm) x 58.5″(1485.9mm) x 5.91″(150mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder has bleeder screws on rod end. Numbers on cylinder 688481

SPECIFICATIONS
Double Acting Bore x Stroke 8.43″(215mm) x 58.5″(1485.9mm) Barrel Thickness 0.801″ Gland Retainer Bolt on gland Pressure3000 PSI Rod Dia.5.91″(150mm)	Ports 4 bolt 1-1/4″ code 62 flange size 20 Retracted Length 94″ Gland Face to Rod Pin Center10″ Shpg. 1628 lbs.

END MOUNTINGS
Base End Swivel Eye Thickness, Max 4.25″ Pin-Center-To-Swivel Eye-End 5.09″ Swivel Eye Width 3.95″ Pin Hole 4-1/2″(114mm)	Base End Swivel Eye Thickness, Max 4.23″ Pin-Center-To-Swivel Eye-End 5.14″ Swivel Eye Width 3.95″ Pin Hole 4-1/2″(114mm)
