Description

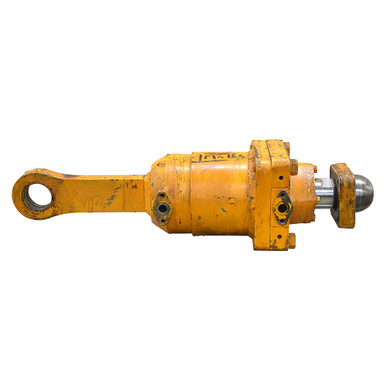

7″(179mm) x 5.5″(140mm) x 3.151″(80mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder. Two bolt flange mount on both ports. Four bolt flange mount on rod end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7″(179mm) x 5.5″(140mm)
- Gland Retainer Bolt on
- Pressure 2500 PSI max.
- Rod Dia. 3.151″(80mm)
|
- Ports Two Bolt Flange
- Flange port hole 0.794″
- Flange bolt holes M12-1.25 tapped holes on 2.56″ centers
- Retracted Length 34″
- Gland Face to Rod Pin Center 6.125″
- Shpg. 275 lbs.
|
| END MOUNTINGS |
|
- Rod End Ball
- Ball Width3.922″
- Ball O.D. 3.3″
- Mounting Flange Four bolt
- Mounting Flange Thickness 1.586″
- Bolt Holes 0.695″ on 3.693″ centers
|
- Base End Tang
- Width 1.795″
- Pin-Center-To-Tang-End 2.595″
- Pin Hole 2.75″
|
