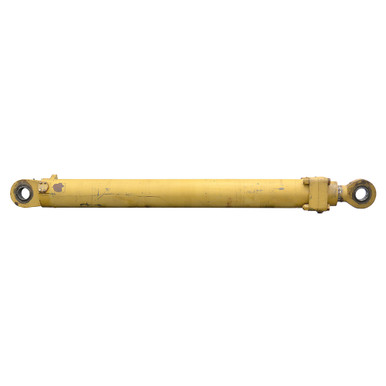

7" x 62.25" x 4.5" Double Acting Hydraulic Cylinder A-80552

7″ x 62.25″ x 4.5″ Double Acting Hydraulic Cylinder A-80552

Original price was: $1,549.95.Current price is: $309.99.

SKU: 904388 Category:

Description

7″ x 62.25″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder A-80552

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 62.25″
  • Barrel Thickness 0.502″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.5″
  • Extend Port 4 bolt 1-1/4″ code 61 flange size 20
  • Retract Port SAE 20
  • Retracted Length 93.25″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 934 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.5″
  • Pin-Center-To-Swivel Eye-End 3.97″
  • Swivel Eye Width 2.875″
  • Pin Hole 3-1/4″
  • Base End Swivel Eye
  • Thickness, Max 2.53″
  • Pin-Center-To-Swivel Eye-End 4″
  • Swivel Eye Width 2.875″
  • Pin Hole 3-1/4″
