7" x 53" x 4.5" Double Acting Hydraulic Cylinder 938N14F1

7″ x 53″ x 4.5″ Double Acting Hydraulic Cylinder 938N14F1

Original price was: $1,249.95.Current price is: $249.99.

SKU: 905278 Category:

Description

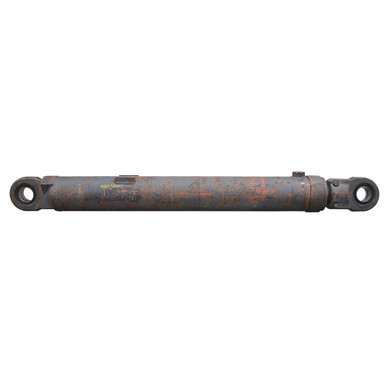

7″ x 53″ x 4.5″ HYDRAULIC CYLINDER
Remove from service. Welded, double acting hydraulic cylinder, model 938N14F1.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 53″
  • Gland Retainer Threaded on
  • Pressure 2500 PSI max.
  • Rod Dia. 4.5″
  • Ports SAE 16
  • Retracted Length 81.5″
  • Gland Face to Rod Pin Center 9.75″
  • Shpg. 920 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 3.345″
  • Pin-Center-To-Swivel Eye-End 4.161″
  • Swivel Eye Width 3.055″
  • Pin Hole 3.5″
  • Base End Swivel Eye
  • Width 3.225″
  • Pin-Center-To-Swivel Eye-End 4.277″
  • Swivel Eye Width 3.056″
  • Pin Hole 3.5″
