Description

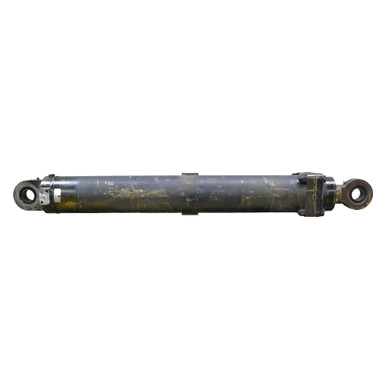

7″ x 49.875″ x 4″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has internal cushion valve at end of each stroke. Benton Harbor Engineering numbers on cylinder 6070355
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7″ x 49.875″
- Barrel Thickness 0.475″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 4″
|
- Ports 4 bolt 1-1/4″ code 61 flange size 20
- Retracted Length 70.25″
- Gland Face to Rod Pin Center 4.25″
- Shpg. 605 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 2.46″
- Pin-Center-To-Swivel Eye-End 3.34″
- Swivel Eye Width 2.19″
- Pin Hole 2-1/2″
|
- Base End Swivel Eye
- Thickness, Max 2.46″
- Pin-Center-To-Swivel Eye-End 3.35″
- Swivel Eye Width 2.19″
- Pin Hole 2-1/2″
|
