Name: 7.896"(200mm) x 74.5" x 5.5" Double Acting Hydraulic Cylinder Komatsu 209-63-02011
Brand: toolingsupplyoutlet.com
SKU: 903238
Price: 669.10 USD
Availability: InStock

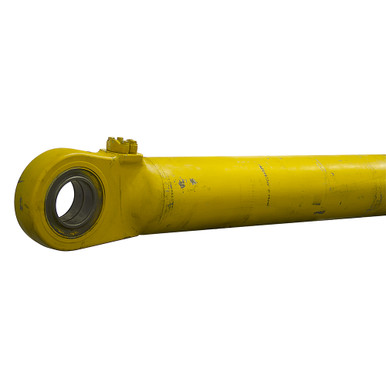

7.896″(200mm) x 74.5″ x 5.5″ Double Acting Hydraulic Cylinder Komatsu 209-63-02011

SKU: 903238 Category: hot sale

Description

7.896″ (200mm) x 74.5″ x 5.5″ DA HYDRAULIC CYLINDER
Unused, old inventory. KOMATSU model 209-63-02011 welded cylinder with bolt-on gland cap. Split flange adapters have M12-1.75 bolts.

SPECIFICATIONS
Double Acting Bore x Stroke7.896″ (200mm) x 74-1/2″ Barrel Thickness0.802″ Pressure 3000 PSI max. Rod Dia. 5-1/2″	Ports1-1/4″ Four Bolt Flange, Code 62 w/ Split-Flange Adapters Retracted Length 113-1/2″ Shpg. 1800 lbs.

END MOUNTINGS
Rod End Tang w/ Swivel Eye Max Thickness 3-7/8″ Pin Center to Tang End 5-15/16″ Pin Hole 115mm (4.525″)	Base End Tang w/ Swivel Eye Max Thickness 4-5/16″ Pin Center to Tang End 5-7/8″ Pin Hole 130mm (5.118″)
