Description

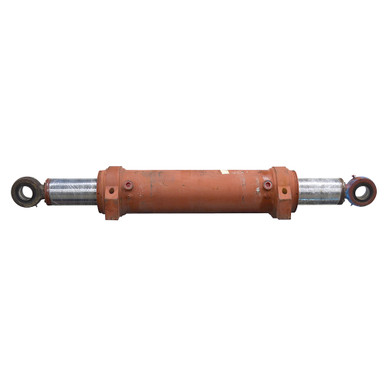

7.87″(200mm) x 15.16″(385mm) x 5.5″(140mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic steering cylinder. Numbers on cylinder D8446776.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.87″(200mm) x 15.16″(385mm)
- Barrel Thickness 0.481″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 5.5″(140mm)
|
- Ports BSPP 3/4″-14
- Retracted Length 67.75″
- Gland Face to Rod Pin Center 6.5″
- Shpg. 830 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.36″
- Pin-Center-To-Swivel Eye-End 6.5″
- Swivel Eye Width 2.56″
- Pin Hole 2.76″(70mm)
|
- Rod End Swivel Eye
- Width 2.36″
- Pin-Center-To-Swivel Eye-End 6.5″
- Swivel Eye Width 2.56″
- Pin Hole 2.76″(70mm)
|
- Flange Mount Dimensions Four M27-2.0 bolt holes on 11″ x 33″ bolt centers
|
