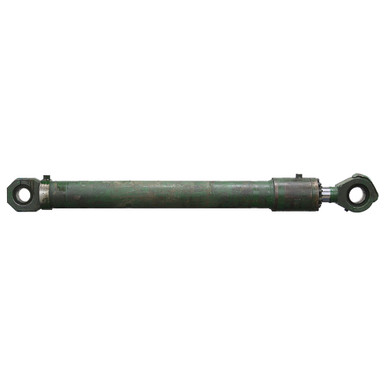

Name: 7.85"(200mm) x 75.5"(1917.7mm) x 5.51"(140mm) Double Acting Hydraulic Cylinder
Brand: toolingsupplyoutlet.com
SKU: 904385
Price: 309.99 USD
Availability: InStock

7.85″(200mm) x 75.5″(1917.7mm) x 5.51″(140mm) Double Acting Hydraulic Cylinder

SKU: 904385 Category: hot sale

Description

7.85″(200mm) x 75.5″(1917.7mm) x 5.51″(140mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has 2 air bleeders on each end of cylinder. Numbers on cylinder 8105 439333v 6132 6265 220188 11174

SPECIFICATIONS
Double Acting Bore x Stroke 7.85″(200mm) x 75.5″(1917.7mm) Barrel Thickness 0.823″ Gland Retainer Bolt on gland Pressure 3000 PSI Rod Dia. 5.51″(140mm)	Extend Port 4 bolt 1-1/2″ code 62 flange size 24 Retract Port 4 bolt 1-1/4″ code 62 flange size 20 Retracted Length 114.5″ Gland Face to Rod Pin Center 13″ Shpg. 1911 lbs.
END MOUNTINGS
Rod End Swivel Eye Thickness, Max 5.06″ Pin-Center-To-Swivel Eye-End 8″ Swivel Eye Width 3.54″ Pin Hole 5.51″(140mm)	Base End Swivel Eye Thickness, Max 5.11″ Pin-Center-To-Swivel Eye-End 5.51″ Swivel Eye Width 4.14″ Pin Hole 4.72″(120mm)
