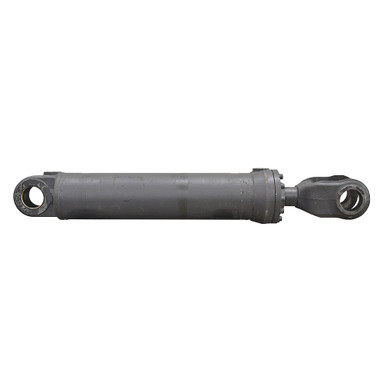

7.5"(190.5mm) x 31"(787.4mm) x 3.535"(90mm) Double Acting Hydraulic Cylinder

7.5″(190.5mm) x 31″(787.4mm) x 3.535″(90mm) Double Acting Hydraulic Cylinder

Original price was: $799.95.Current price is: $159.99.

SKU: 902486 Category:

Description

7.5″(190.5mm) x 31″(787.4mm) x 3.54″(90mm) DA HYDRAULIC CYL
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke7.5″(190.5mm) x 31″(787.4mm)
  • Barrel Thickness 0.547″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia.3.54″(90mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 56.625″
  • Gland Face to Rod Pin Center11.25″
  • Shpg. 412 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 9″
  • Inside Width 4.71″
  • Throat Depth 9.5″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Thickness, Max 4.52″
  • Pin-Center-To-Tang-End 3.64″
  • Pin Hole 3.94″(100mm)
