Description

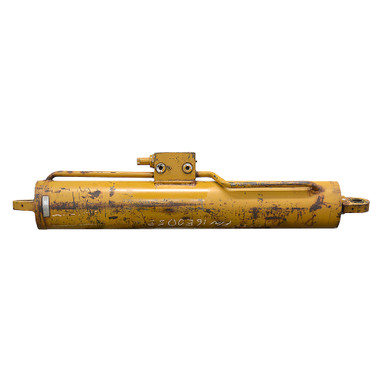

7.5″ x 39.75″ x 3.25″ DA HYDRAULIC CYLINDER
Unused, old inventory. IOWA INDUSTRIAL HYDRAULICS model P-2196-002 welded cylinder with thread-in gland cap. Manifold block has adjustable holding cartridge valve with no markings.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke7-1/2″ x 39-3/4″
- Barrel Thickness3/8″
- Pressure 3000 PSI max.
- Rod Dia. 3-1/4″
|
- PortsSAE 16
- Retracted Length 56-1/2″
- Shpg. 440 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang w/ Swivel Eye
- Max Thickness 1-1/2″
- Pin Center to Tang End 2-1/8″
- Pin Hole 1-3/4″
|
- Base End Tang w/ Swivel Eye
- Max Thickness 1-9/16″
- Pin Center to Tang End 2″
- Pin Hole 1-3/4″
|
