60:1 RIGHT ANGLE WORM GEAR REDUCER

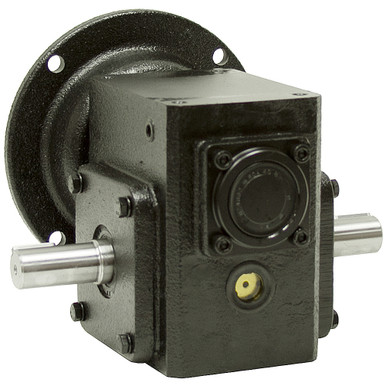

Brand new, WorldWide Electric right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil SHC632 synthetic oil for the “A” position. (Refer to installation and maintenance manual for oil capacity for different mounting positions)
SPECIFICATIONS
- Brand WorldWide Electric
- Model Number HDRF-133-60-DE-56C
- Box Size 133 (1.33″ Center of Input Shaft to Center of Output Shaft)
- Ratio 60:1
- Input Speed 1750 RPM max.
- Output Speed 29 RPM max.
- Mechanical HP (1.0 SF) Ratings
Input HP 0.23 HP
Output Torque 261 in-lb.
Output HP 0.12 HP - Thermal Capacity Ratings
Input HP 0.22 HP
Output Torque 252 in-lb.
Output HP 0.12 HP - Efficiency 53%
- Overhung Load 300 lbs.
- Output Shaft Thrust Load 300 lbs.
- Output Shaft Centerline Height 1.718″
- Motor Mount NEMA 56C w/ four 0.433″ dia. holes on 5.875″ dia. B.C.
- Input Bore 5/8″ keyed bore
- Output Type Dual Shaft
- Output Shaft 5/8″ dia. x 2″ keyed
- Mount Two sets of four 5/16″-18 tapped holes on 3-1/4″ x 2″ centers
- Size 6″ x 6-1/2″ x 6-1/2″
- Shpg. 18 lbs.
