Description

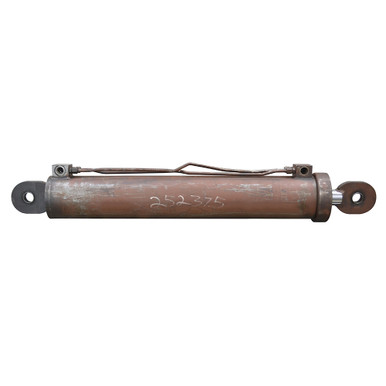

6″ x 36″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 160021 5-81-001. Cylinder requires two unknown cartridge valves, that are missing, one in base end, one in rod end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 36″
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
- Rod Thickness 2.5″
|
- Ports 1/4″ NPT
- Retracted Length 51.25″
- Gland Face to Rod Pin Center 5.5″
- Shpg. 257 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.157″
- Pin-Center-To-Swivel Eye-End 2.986″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
- Base End Swivel Eye
- Width 1.138″
- Pin-Center-To-Swivel Eye-End 2.78″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
