Description

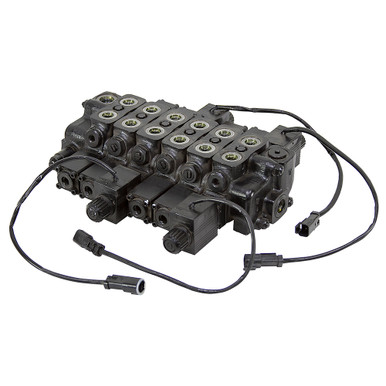

6 SPOOL PILOT AND SOLENOID OPERATED CONTROL VALVE
New, WALVOIL SD6/6 hydraulic control valve.
SPECIFICATIONS
- Brand Walvoil
- Model Number SD6/6
- Open Center
- Spools Six
- Flow 12 GPM max.
- Pressure 4600 PSI max.
- Relief Valve Adj. 1450-2900 PSI set @ 2950 PSI
- In/Out Ports SAE 8
- Work Ports SAE 6
- Pilot Ports SAE 4
- Mount Base four bolt on 11-1/4″ x 4-1/4″ centers
- Size 12.125″ x 10.5″ x 4.75″
- Shpg. 55 lbs.
Spool Details:
Spool 1 Double Acting Cylinder Spring Centered Pilot Operated
Spool 2 Double Acting Cylinder Spring Centered Pilot Operated with work port reliefs
Spool 3 Double Acting Cylinder Spring Centered Solenoid Operated with work port reliefs
Spool 4 Double Acting Cylinder Spring Centered Pilot Operated with work port reliefs
Spool 5 Double Acting Cylinder Spring Centered Pilot Operated with work port reliefs
Spool 6 Double Acting Cylinder Spring Centered Solenoid Operated
