Description

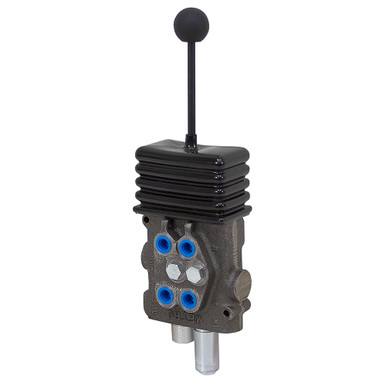

COMPACT 2 SPOOL JOYSTICK DOUBLE ACTING DIRECTIONAL CONTROL VALVE
Brand new METRO D series directional control valve for operating double acting cylinders. Joystick single lever control to operate both spools independently or simultaneously. Ideal for small tractor and other low flow applications requiring a compact control valve. Features include monoblock construction, load check, built-in adjustable pressure relief valve, spring centering spool action. In/Out ports on bottom, work ports on side when valve is mounted vertical.
SPECIFICATIONS
- Brand Metro
- Model D2DTTT1TT2QJS
- Open Center
- Spools Two
- Flow 6 GPM max.
- Pressure 3000 PSI max.
- Relief Valve 2500 PSI, adj. 2500-3000 PSI
- In/Out Ports SAE 6
- Work Ports SAE 6
- Mount 2 hole base
- Size 6.25″ x 4.5″ x 2.25″
- Shpg. 9 lbs.
Spool Details:
Spool 1 Double Acting cylinder spool, spring to center w/detented float
Spool 2 Double Acting cylinder spool, spring to center
