Description

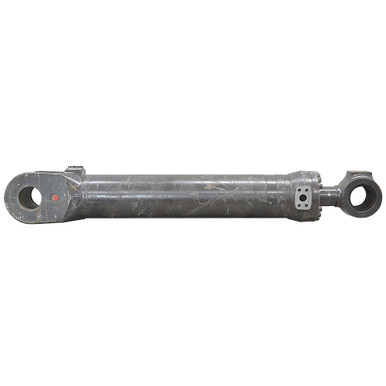

6.625″(170mm) x 32″(812.8mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.625″(170mm) x 32″(812.8mm)
- Barrel Thickness 0.605″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports 4 bolt 1-1/4″ code 62 flange size 20
- Retracted Length 57.5″
- Gland Face to Rod Pin Center 8″
- Shpg. 580 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 5.27″
- Pin-Center-To-Tang-End 3.6″
- Pin Hole 3.98″(100mm)
|
- Base End Clevis
- Outside Width 9″
- Inside Width 5.73″
- Throat Depth 9.5″
- Pin Hole 3.97″(100mm)
|
