Sale!
6.5" x 49.625" x 3" Double Acting Hydraulic Cylinder 73063165

6.5″ x 49.625″ x 3″ Double Acting Hydraulic Cylinder 73063165

Original price was: $599.95.Current price is: $119.99.

SKU: 904500 Category:

Description

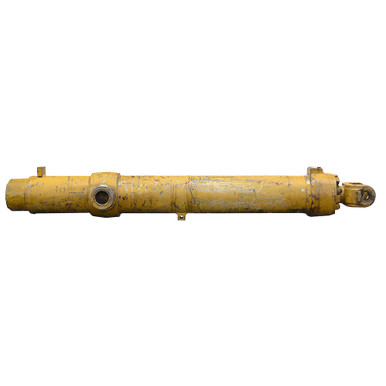

6.5″ x 49.625″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Base end has manifold for accessory valve. Numbers on cylinder 73063165.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″ x 49.625″
  • Barrel Thickness 0.353″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3″
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 48.75″
  • Gland Face to Rod Pin Center 4.625″
  • Shpg. 336 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 6.94″
  • Inside Width 3.71″
  • Throat Depth 4.03″
  • Pin Hole 1-3/4″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 11.125″ / 7.13″
  • Pin-Center-To-Rod Pin Center 48.75″
  • Pin Center To Base End 18.75″
  • Pin Hole 2.5″
  • Base End Mount for four bolt accessory valve
  • Bolt Dimensions  Four, 5/8″-18 on 3.245″ x 3.537″ bolt centers
  • Manifold Ports Two ports
