Description

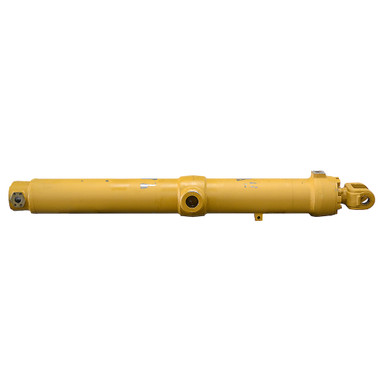

6.5″ x 49.5″ x 3″ DA HYDRAULIC CYLINDER
Unused, old inventory. Model 73065119 welded cylinder with thread-in gland cap. Base end of cylinder has manifold pad with two 1-1/4″ I.D. ports and four 5/8″-18 tapped bolt holes on 3-1/2″ x 3-1/4″ centers.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke6-1/2″ x 49-1/2″
- Barrel Thickness3/8″
- Pressure 3000 PSI max.
- Rod Dia. 3″
|
- Ports1-1/4″ Four-Bolt Flange, Code 61
- Retracted Length 35″
- Shpg. 490 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 7″
- Inside Width 3-11/16″
- Throat Depth 4-1/16″
- Pin Hole 1-3/4″
|
- Trunnion Female
- Pin Outside Width 11-1/8″
- Pin Inside Width 7-1/4″
- Pin Center to Rod Pin Center 35″
- Pin Center to Base End 37-1/4″
- Pin Diameter 2-1/2″
|
