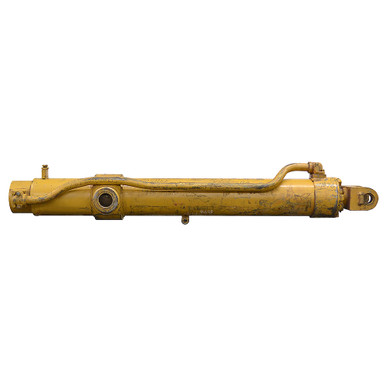

6.5" x 49.5" x 3" Double Acting Hydraulic Cylinder 073132295

6.5″ x 49.5″ x 3″ Double Acting Hydraulic Cylinder 073132295

Original price was: $379.95.Current price is: $75.99.

SKU: 904512 Category:

Description

6.5″ x 49.5″ x 3″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 073132295.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.5″ x 49.5″
  • Barrel Thickness 0.365″
  • Gland Retainer Threaded in gland
  • Pressure3000 PSI
  • Rod Dia. 3″
  • Ports 4 bolt flange with 5/8″-18 drilled and tapped holes, 1.44″ deep on 3.48″ x 3.24″ bolt centers
  • Retracted Length 49″
  • Gland Face to Rod Pin Center4.75″
  • Shpg. 467 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 7″
  • Inside Width 3.78″
  • Throat Depth 3.77″
  • Pin Hole 1-3/4″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 11.125″ /8.625″
  • Pin-Center-To-Rod Pin Center 49″
  • Pin Center To Base End 18.5″
  • Pin Hole 2.535″
